Crushing & Milling Machine

Small Hammer Mill Crusher

Browse:time  Update:2019-03-23

Small Hammer Mill

 ---We supply full line of mining equipments and technical support

Description
The small hammer crusher (hammer mill) crushes by the collisions between high-speed hammer and materials, and its features are simple structure, high reduction ration, high efficiency, etc. The small hammer crusher (hammer mill) is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.

Alt hammer mill

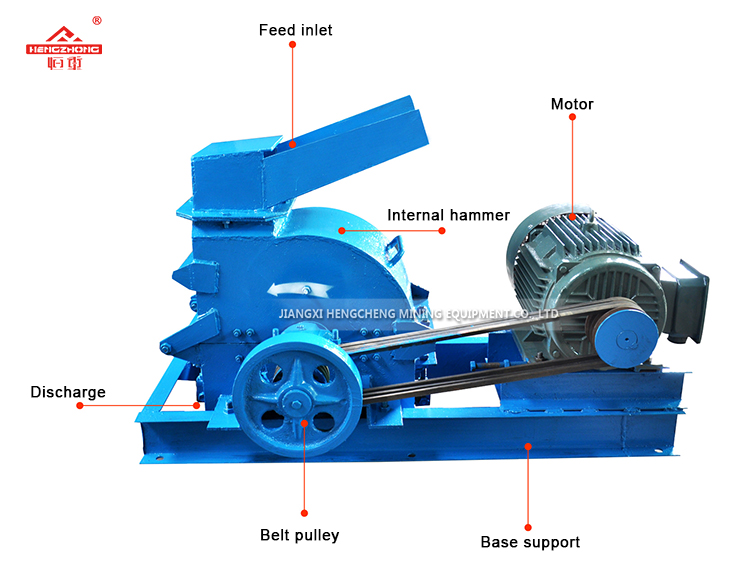

Working principle
The motor drives the rotor rotate at a high speed through the belt, and on the rotor there are series hammers. When the materials feed into the working area of hammers, they are crushed by the rotating hammers in high speed, the minerals which are crushed into the required size can be discharged by the outlet, and become the final products; while the large size products are brought back to the crushed area by the hammers to be recrushed until they reached the required size.

Alt hammer mill


Small hammer mill Technical Data

Model SizeCapacity (t/h)Maxing feeding size mmDischarging Size mmMotor (kw)Disel (hp)
200×5001-3≤50≥1.87.518
300×5003-6≤50≥1.81130
400×6005-10≤50≥1.822-3045
600×6008-12≤50≥1.822-3760
600×80010-15≤50≥1.83780





Small Hammer Mill Details Show:

Alt diesel hammer mill

Alt diesel hammer mill

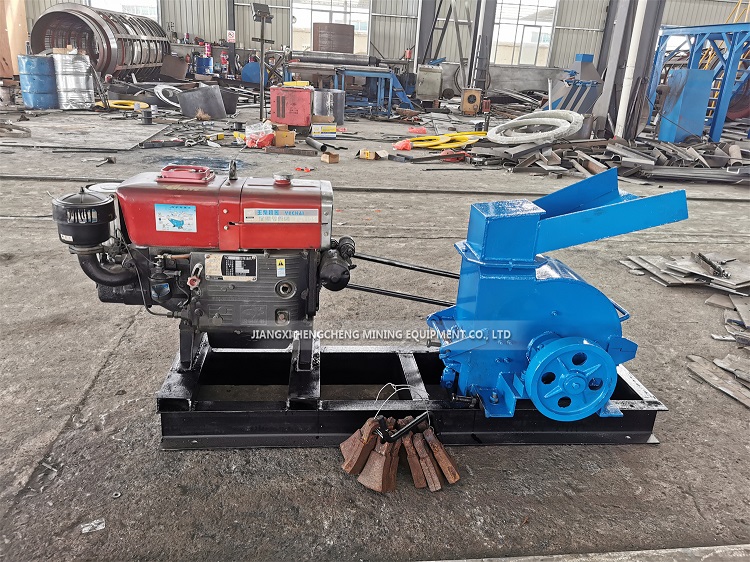

Diesel engine hammer mills

Alt diesel hammer mill

Alt hammer mill

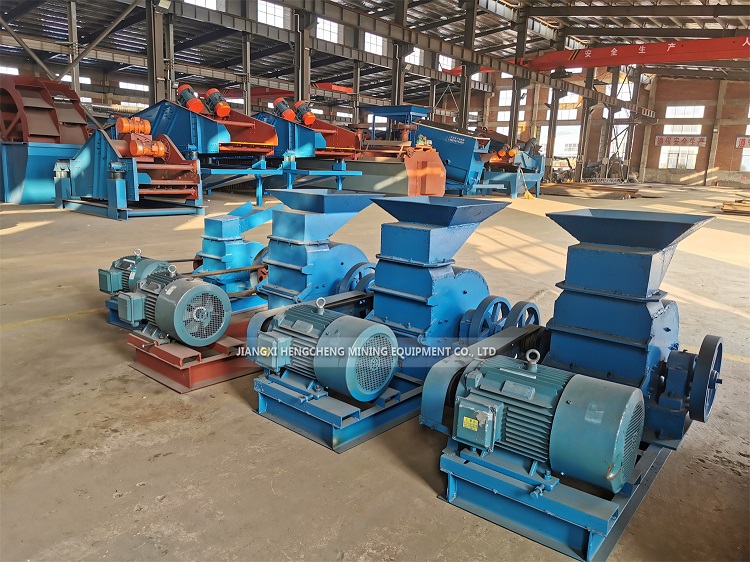

Electric motor engine hammer mills

Alt hammer mill

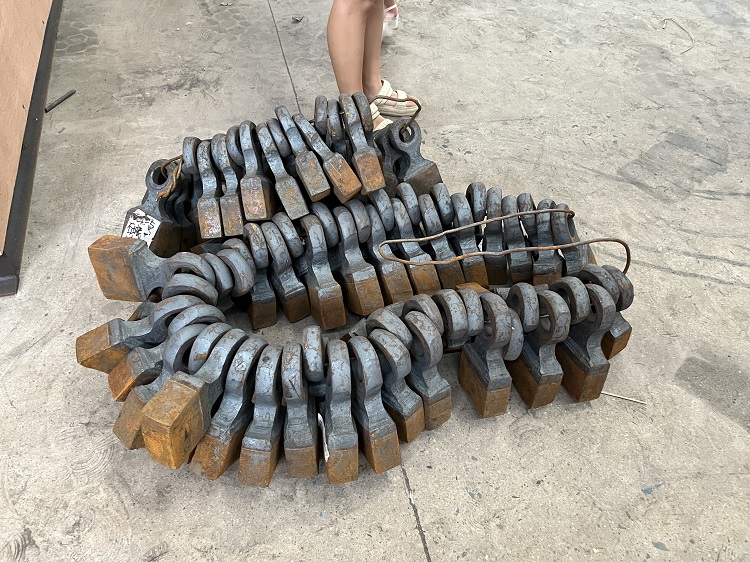

Steel Hammers (high-manganese steel)

Alt hammer mill

Hammer mill discharge screen plates (hole size >2.0mm)

Alt hammer mill

Hammer mill inside view

Alt hammer mill

Alt hammer mill

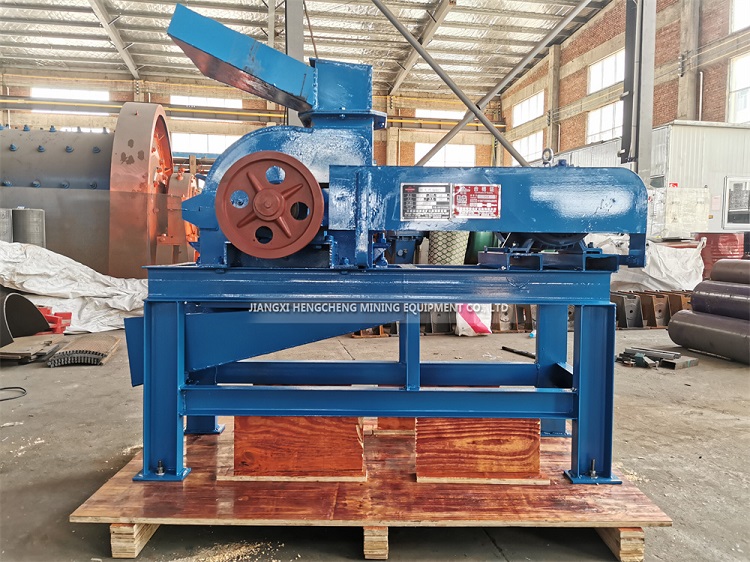

Small hammer mills packing up for exportation.
