Gravity Separator

Gold shaker table centrifuge shaking table

Browse:time  Update:2018-11-12



Mineral processing shaking table small gold shaker table



  • beneficiation shaking table

  • centrifuge shaking table

  • shaking table for mineral processing

---We supply full line of mining equipment and technical support

What is a shaking table?





Shaking table (shake table) is one of the important dressing equipment depending on the gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.

Shaker Tables are designed to wet gravity-based separation of minerals and other granular materials.

There are many applications where the concentrating table is of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.



alt gold shaker table











Shaking table diagram

alt gold shaker table shaking table

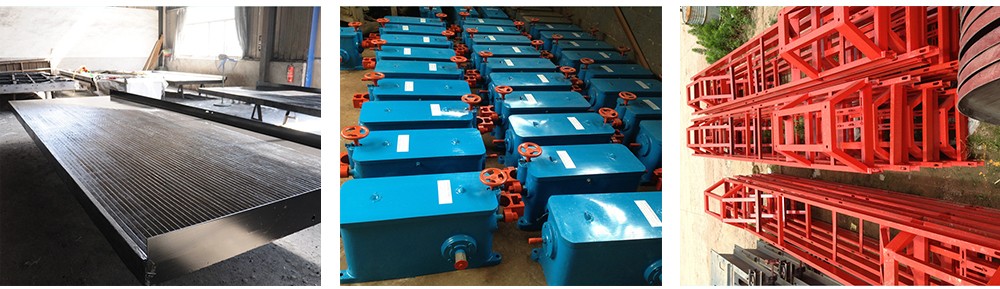

What is shaking table construction?

Shaking table head   The head motion is of rugged construction and requires minimum maintenance. Its internal mechanism is splash lubricated from an integral oil sump.

Shaking table Deck   The decks are built of 16 mm zircon-reinforced fiberglass with fabricated steel frames at the bottom, and are easy to clean, required little maintenance. The specific gravity of fiberglass made into decks is one third of that of steel, while its strength reaches as high as 70% of the steel. The fiberglass desk also has the characteristic of water-resistance and corrosion-resistance, and can hold the shape unchangeable at ±50℃.

Shaking table feeder and Water Box   A wooden feeding ore box with hopper and a long water box are attached to the iron of the deck, give a very uniform feeding and water supply.

Shaking table Steel Base    There are ordinary type, groove steel support or big channel steel support available.


alt gold shaker table shaking table



alt gold shaker table shaking table







How does a shaking table work?


 The raw materials on the shaking table are with mixed densities, the suspending particles of the materials will leak down from the shaking table for its bearing the larger force. When the shaking table works, the raw materials on the table will tumbling and sliding with the shaking table. The different speed of the particles will lead the table expanding, then the particles with smaller size will screening out. The raw mineral materials will be selecting by adjusting the speed of the table.



alt gold shaker table shaking table



alt gold shaker table shaking table





 What is advantages of a shaking table ?



  1. High recovery ratio;

  2. High concentration ratio;

  3. Easy installation;

  4. Simple operation;

  5. Deck constructed of fiber glass;

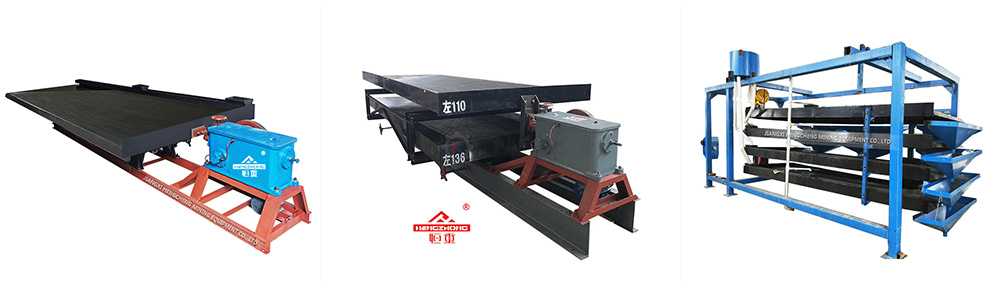

  6. Seven different decks to choose;

  7. Long working life;

  8. Adjustable stroke length and speed.

 alt gold shaker table shaking table



Shaking Table Technical Parameters




Packaging & Shipping


1. All the goods will be delivered in 10-20 days after receving payment.
2. The machine will be packed in export container.
3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
4. We promise that your goods will be shipped to destination timely and safely.







Why choose us


1. We are Manufacturer  (Not Dealer):

All machineries from Jiangxi Hengcheng Mining Equipment Company are made by ourselves, with lower price, good quality and assured full after service. The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.

2. Training & Service:

  • We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.

  • Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

  • We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.


  • What is the type and size of raw material?

  • What is required size of final product(mm)?

  • What is the capacity do you need per hour?
