Gold Washing plant

Gold Washing machine rotating drum scrubber

Browse:time  Update:2018-12-13

Gravel gold washing machine with rotary drum

  • gravel washing  machine

  • gold washing machine

  • rotary washing plant

---We supply full line of mining equipment and technical support

Product Description


What is Rotary Scrubber gold washing plant?

Rotary scrubber makes rocks and pebbles collide,rub & roll with each other in the drum. Add high pressure water spray to decompose clay. The new type of roller washing machine has a big capability with high degree of cleaning.It has been widely used in many sedimentary ore production lines.

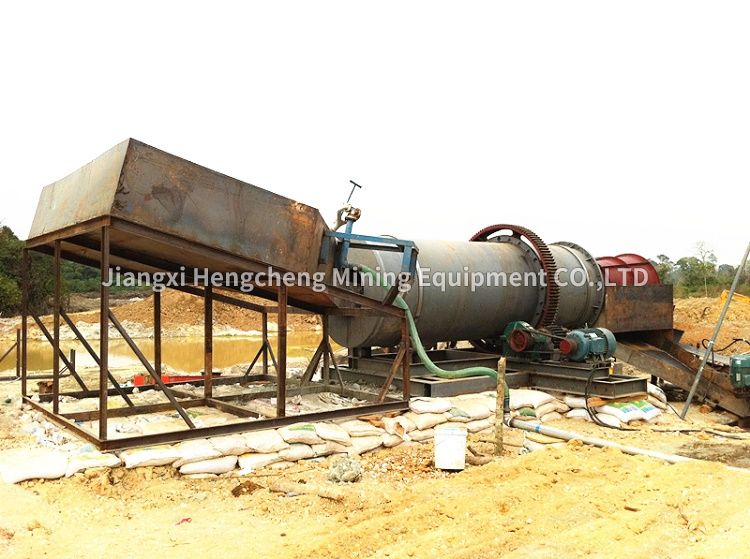

alt gold washing plant Rotary Scrubber


alt gold washing plant Rotary Scrubber


Rotary scrubber gold washing plant Specification

· Designed to break up alluvial gravels, clays and sand;

· High capacity and high power scrubbing;

· The long drum of the scrubber retains material for longer, more vigorous washing for complete separation;

· Thickening type steel plate for the drum;

· Heavy duty bearing, gear and roller;

· Wearable screen at the exit of drum for screening;

· One high output electrical motor driving a gear system providing efficient torque;

· Adjustable rotary speed;

· The water with high pressure flushed the inwall of drum;

· Can accept material up to 230mm.

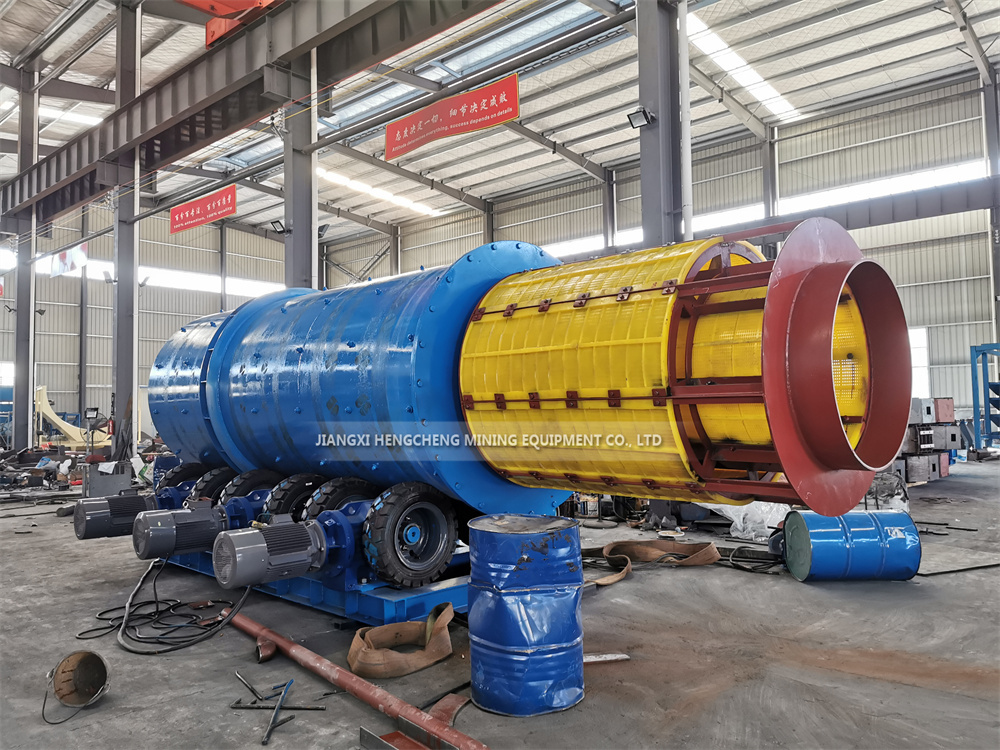

alt gold washing plant Rotary Scrubberalt gold washing plant Rotary Scrubber


How does gold washing plant work?

The scrubber spins slowly, similar to a giant washing machine.It churns the fines and oversize and water together, vigorously breaking up the soil matrix as well as liberating the target mineral from tough clay, mud and rock. Disintegrated material is homogeneously slurried within the drum, whilst the autogenous load is retained within the drum by reverse flights located at the drum discharge end.

Slurry and washed oversize overflows the drum discharge throat to the concentric exit trommels. This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spiral chute, jig etc.

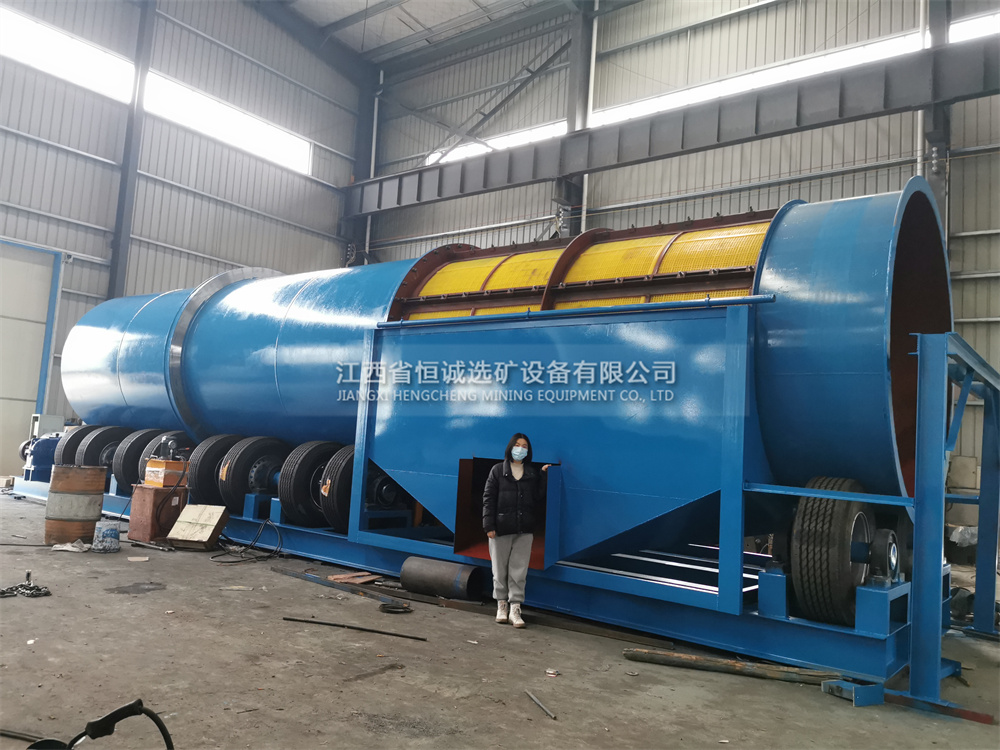

alt gold washing plant Rotary Scrubber

Application of Rotary scrubber

Rotary scrubber is mainly applied to placer with high mud content and high stickiness. According to the actual demand, the cone screen is installed at the outlet, and the washing sieve can be completed by one machine at the same time.

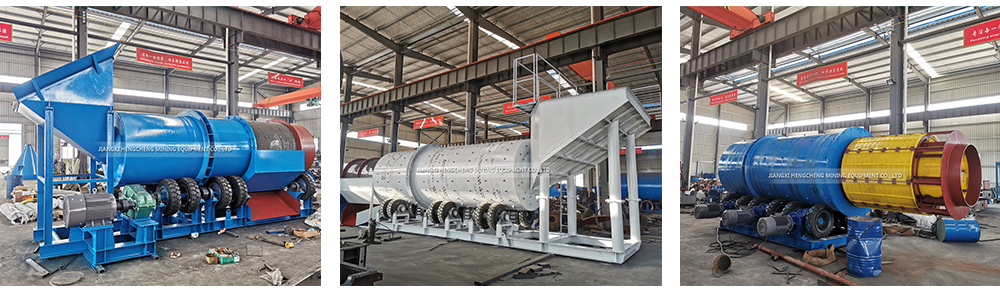

alt gold washing plant Rotary Scrubber


alt gold washing plant Rotary Scrubber


Why choose us


1. We are Manufacturer  (Not Dealer):

All machineries from Jiangxi Hengcheng Mining Equipment Company are made by ourselves, with lower price, good quality and assured full after service. The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.

2. Training & Service:

  • We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.

  • Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

  • We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.

What is the type and size of raw material?

What is required size of final product(mm)?

What is the capacity do you need per hour?


Certifications



Company Information


Jiangxi Hengcheng Mining Equipment Company is specialized in manufacturing various kinds of mining equipment. We have served the mineral processing industry as an excellent mineral processing equipment manufacturer for over 20 years.

Hengcheng company is dedicated to provide a complete line of equipment including shaking table, spiral chute, jig machine,trommel,rotary scrubber, flotation machine, magnetic separator,grinding mill, and so on. We are involved in the range of mineral beneficiation services including mineral testing, process flowchart design, installation and commissioning, technical consulting, as well as staff training,etc. Our proven technologies and experience permit us to provide every customer with the most effiicent & commercial beneficiation plant equipment.
