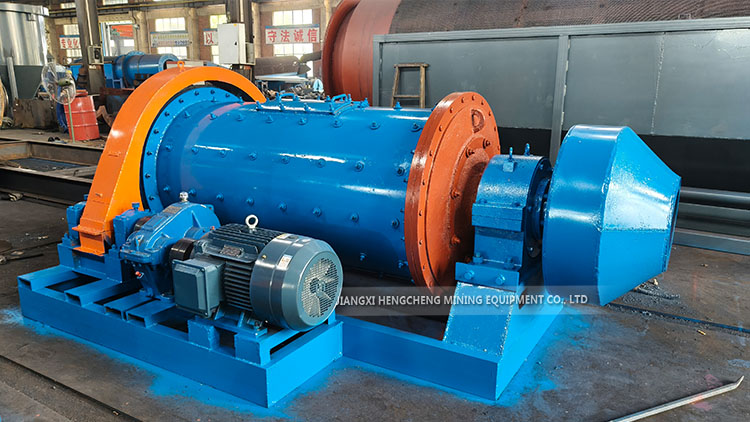

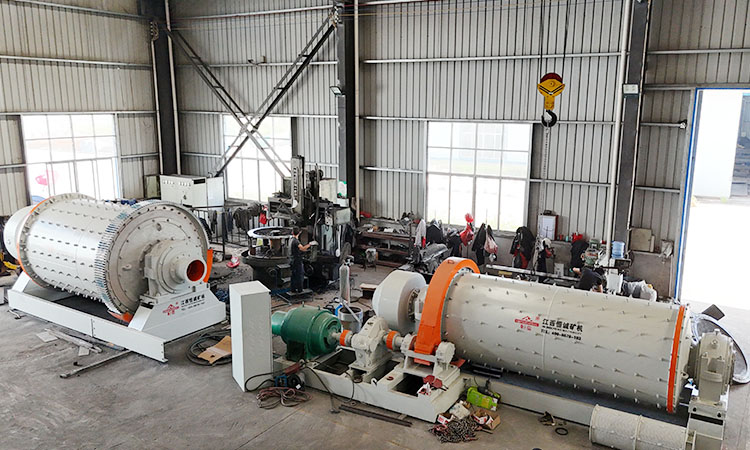

Wet Grinding Ball Mill
Wet Grinding Ball Mill
Description
Ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Working Principle:
The ball mill is a horizontal rotating device transmitted by the outter gear. The materials are fed into the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different size of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board, then the grinding process is finished.

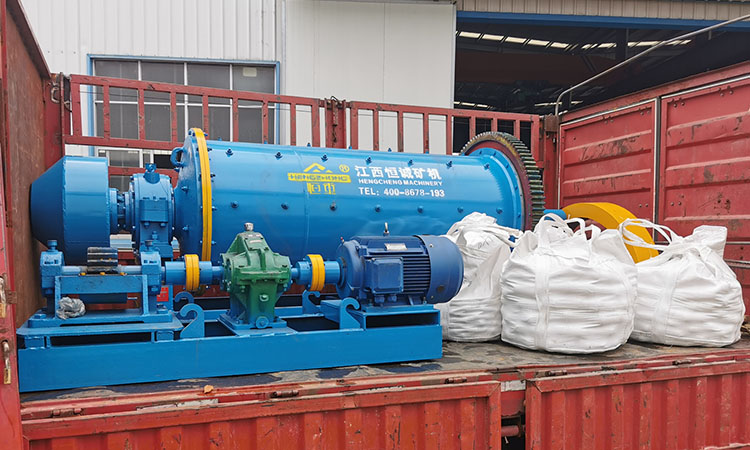

.jpg)
Technical Data
MODEL | Drum size (mm) | Rotary speed （r/min） | Ball loading （t） | Feed size （mm） | Capacity （t/h） | Electric power | Dimension（mm） (L×W×H) | Weight （kg） | |
Model | Power (kw) | ||||||||
GM0715 | Φ750x1500 | 44.09 | 0.9 | 0-25 | 0.2-0.6 | Y160M-6 | 7.5 | 3250x1200x882 | 2300 |
GM0909 | Φ900x900 | 41.6 | 0.83 | 0-25 | 0.2-0.7 | Y160L-6 | 11 | 3337x1850x1400 | 3850 |
GM0912 | Φ900x1200 | 41.6 | 1.1 | 0-25 | 0.3-0.9 | Y160L-6 | 11 | 3843x1850x1400 | 4210 |
GM0918 | Φ900x1800 | 41.6 | 1.6 | 0-25 | 0.4-1.1 | Y180-6 | 15 | 4443x1850x1400 | 5650 |
GM0921 | Φ900x2100 | 41.6 | 1.8 | 0-25 | 0.6-1.5 | Y180L-6 | 22 | 4743x1850x1400 | 6660 |
GM0933 | Φ900x3300 | 41.6 | 2.8 | 0-25 | 0.9-2.3 | Y225M-6 | 30 | 5943x1850x1400 | 7770 |
GM1224 | Φ1200x2400 | 35.2 | 4.0 | 0-25 | 1.6-4.1 | Y250M-8 | 30 | 5540x2300x1850 | 10020 |
GM1228 | Φ1200x2800 | 35.2 | 4.6 | 0-25 | 1.9-4.8 | Y280S-8 | 37 | 5940x2300x1850 | 10935 |
GM1232 | Φ1200x3200 | 35.2 | 5.3 | 0-25 | 2.2-5.5 | Y280M-8 | 45 | 6340x2300x1850 | 11230 |
GM1244 | Φ1200x4400 | 35.2 | 7.3 | 0-25 | 3.0-7.5 | Y315M-8 | 75 | 7540x2300x1850 | 13210 |
GM1324 | Φ1300x2400 | 30.2 | 4.5 | 0-25 | 1.5-3.5 | Y280S-8 | 37 | 5035x2370x1880 | 10210 |
GM1328 | Φ1300x2800 | 30.2 | 5.2 | 0-25 | 2.0-4.5 | Y280M-8 | 45 | 5435x2370x1880 | 11290 |
GM1334 | Φ1300x3400 | 30.2 | 6.5 | 0-25 | 2.2-5.0 | Y315S-8 | 55 | 6035x2370x1880 | 13117 |
GM1524 | Φ150x2400 | 30.7 | 6.5 | 0-25 | 2.8-6.5 | Y315S-8 | 55 | 6830x2930x2060 | 15430 |
GM1530 | Φ1500x3000 | 30.7 | 8.1 | 0-25 | 3.5-8.0 | JR117-8 | 80 | 7430x2930x2060 | 16843 |
GM1533 | Φ1500x3300 | 30.7 | 9.0 | 0-25 | 4.0-9.0 | JR117-8 | 80 | 7730x2930x2060 | 17849 |
GM1536 | Φ1500x3600 | 30.7 | 9.8 | 0-25 | 4.5-10.0 | JR125-8 | 95 | 8030x2930x2060 | 18649 |
GM1542 | Φ1500x4200 | 30.9 | 11.4 | 0-25 | 5.0-11.0 | JR126-8 | 110 | 8630x2930x2060 | 19330 |
GM1545 | Φ1500x4500 | 30.9 | 12.5 | 0-25 | 5.5-13.5 | JR126-8 | 110 | 8930x2930x2060 | 20000 |
GM1557 | Φ1500x5700 | 30.9 | 15.5 | 0-25 | 7.0-15.5 | JR127-8 | 130 | 10130x2930x2060 | 23597 |
GM1563 | Φ1500x6300 | 31.1 | 17.1 | 0-25 | 8.0-17.0 | JR128-8 | 155 | 10730x2930x2060 | 24390 |
GM1830 | Φ1830x3000 | 27 | 13.0 | 0-25 | 3.0-17.0 | JR127-8 | 130 | 9525x3960x2250 | 29490 |
GM1833 | Φ1830x3300 | 27 | 14.0 | 0-25 | 3.3-20.0 | JR128-8 | 155 | 9925x3960x2250 | 30390 |
GM1836 | Φ1830x3600 | 27 | 15.0 | 0-25 | 4.0-21.5 | JR128-8 | 155 | 10125x3960x2250 | 31600 |
GM1839 | Φ1830x3900 | 27 | 17.0 | 0-25 | 4.5-24.0 | JR128-8 | 155 | 10525x3960x2250 | 32700 |
GM1845 | Φ1830x4500 | 27.2 | 18.6 | 0-25 | 6.0-28.0 | JR136-8 | 180 | 10925x3960x2250 | 34210 |
GM1851 | Φ1830x5100 | 27.2 | 21 | 0-25 | 8.0-50.0 | JR136-8 | 180 | 11725x3960x2250 | 37715 |
GM1860 | Φ1830x6000 | 27.2 | 24.5 | 0-25 | 10.0-60.0 | JR138-8 | 245 | 11336x3960x2250 | 41440 |
GM1869 | Φ1830x6900 | 27.2 | 28.5 | 0-25 | 11.0-65.0 | JR139-8 | 280 | 13525x3960x2250 | 46418 |
GM2121 | Φ2100x2100 | 23.8 | 11.5 | 0-25 | 3.0-22.0 | JR127-8 | 130 | 7775x4060x3400 | 38793 |
GM2130 | Φ2100x3000 | 23.9 | 16.5 | 0-25 | 4.0-30.0 | JR136-8 | 180 | 8475x4060x3400 | 41965 |
GM2136 | Φ2100x3600 | 23.9 | 19.8 | 0-25 | 5.0-37.0 | JR136-8 | 180 | 9225x4060x3400 | 44551 |
GM2139 | Φ2100x3900 | 23.9 | 21.5 | 0-25 | 5.2-39.0 | JR137-8 | 210 | 9475x4060x3400 | 46697 |
GM2145 | Φ2100x4500 | 23.9 | 24.8 | 0-25 | 5.6-42.0 | JR138-8 | 245 | 9975x4060x3400 | 49230 |
GM2163 | Φ2100x6300 | 23.9 | 35.6 | 0-25 | 5.0-70 | JR1391-8 | 320 | 11975x4060x3400 | 57612 |
GM2169 | Φ2100x6900 | 23.9 | 38 | 0-25 | 5.9-80 | JR1392-8 | 380 | 12640x4060x3400 | 59612 |
GM2245 | Φ2200x4500 | 23.9 | 27.32 | 0-25 | 5.8-52 | JR139-8 | 280 | 10136x5100x3890 | 64800 |
GM2266 | Φ2200x6600 | 23.9 | 39.3 | 0-25 | 6-67 | JR1392-8 | 380 | 12700x5100x3890 | 64800 |
GM2436 | Φ2400x3600 | 22.4 | 22.5 | 0-25 | 6.4-81.5 | JR139-8 | 280 | 9770x5000x3970 | 63684 |
GM2445 | Φ2400x4500 | 22.4 | 28 | 0-25 | 7.9-99.2 | JR1392-8 | 380 | 10570x5000x3970 | 72284 |
GM2458 | Φ2400x5800 | 22.4 | 35.5 | 0-25 | 10.2-120 | JR158-8 | 475 | 11870x5000x3970 | 82015 |
GM2460 | Φ2400x6000 | 22.4 | 37 | 0-25 | 10.6-125 | JR158-8 | 475 | 12070x5000x3970 | 83680 |
GM2736 | Φ2700x3600 | 21.7 | 28.5 | 0-25 | 15.0-115 | JR1392-8 | 380 | 10575x5610x4500 | 88400 |
GM2742 | Φ2700x4200 | 21.7 | 33.1 | 0-25 | 17.5-135 | JR158-8 | 475 | 11175x5610x4500 | 90420 |
GM2745 | Φ2700x4500 | 21.7 | 41 | 0-25 | 20-155 | JR158-8 | 475 | 11991x5610x4500 | 92000 |
GM3036 | Φ3000x3600 | 19.5 | 41 | 0-25 | 22-180 | TDMK500-32 | 500 | 14725x6730x5400 | 102000 |
GM3070 | Φ3000x7000 | 19.5 | 63.77 | 0-25 | 28-250 | TDMK1250-36 | 1250 | 18125x6830x5400 | 157000 |
GM3230 | Φ3200x3000 | 18.7 | 33.2 | 0-25 | 50.0-90 | TDMK500-32 | 500 | 11000x7200x5700 | 124000 |
GM3236 | Φ3200x3600 | 18.5 | 37.5 | 0-25 | 70.0-100 | TDMK630-32 | 630 | 11600x7200x5700 | 139000 |
GM3245 | Φ3200x4500 | 18.7 | 58.0 | 0-25 | 90.0-110 | TDMK800-36 | 630 | 13000x7200x5700 | 145000 |
GM3290 | Φ3200x9000 | 18.5 | 93.69 | 0-25 | 128-217 | TDMK1400-36 | 1400 | 17800x7300x5700 | 171000 |
GM3645 | Φ3600x4500 | 17.3 | 61.8 | 0-25 | 23-197 | TDMK1250-36 | 1250 | 15010x7230x6323 | 152000 |
GM3690 | Φ3600x9000 | 17.3 | 123.5 | 0-25 | 131-345 | TDMK1600-36 | 1600 | 19710x7330x6323 | 227000 |
GM4070 | Φ4000x7000 | 16.7 | 115.4 | 0-25 | 130-320 | TDMK2000-32 | 2000 | 18100x78900x6730 | 350000 |
Wet Grinding Ball Mill Details Show:
ball mill steel shell thickness -- 20mm

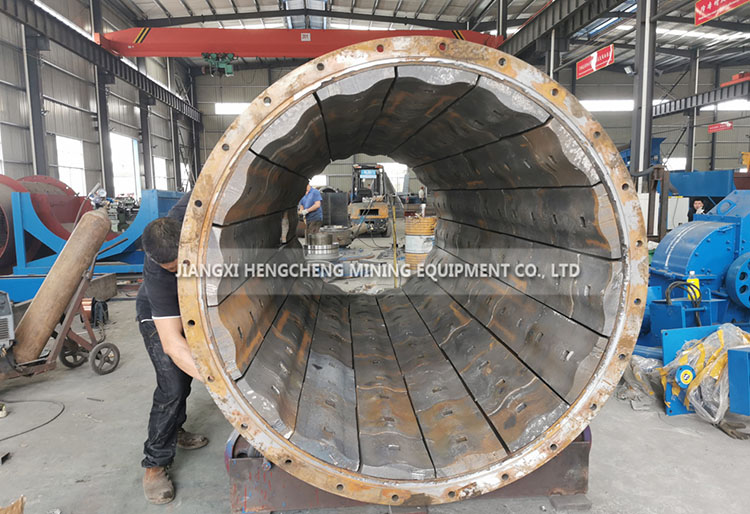

ball mill inside steel liner view

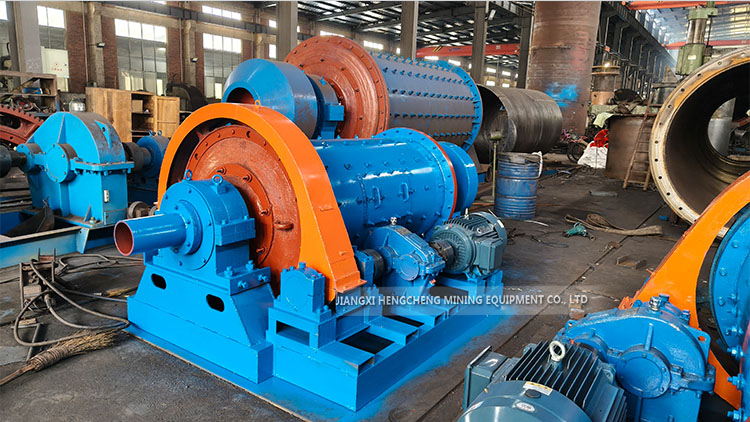

semi-finished ball mill unit

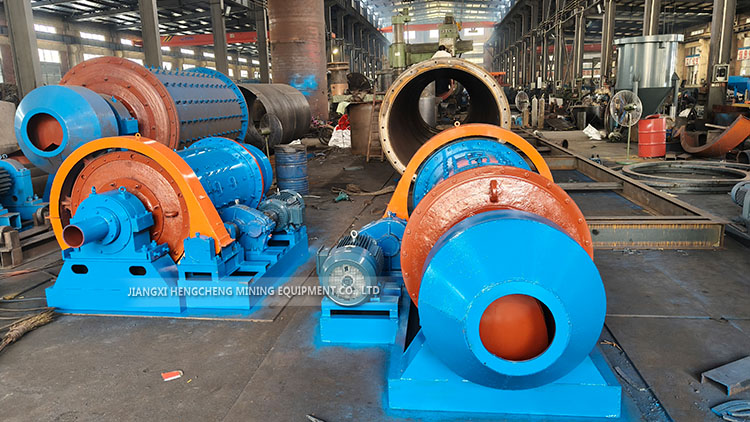

complete ball mill unit
ball mill liner material: high-manganese steel
Steel balls material: Chromium alloy cast steel

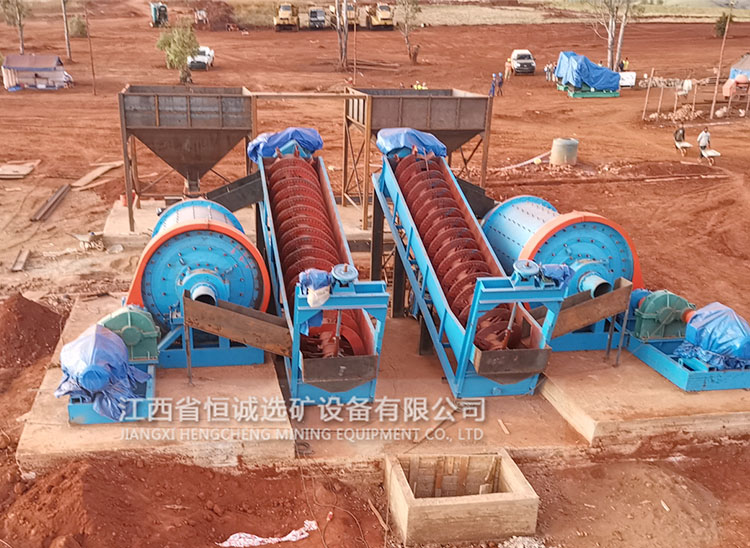

Our ball mill & spiral classifier & flotation cells installed in Tanzania Copper mine
Ball mill working video link:
