Gold process solution

Hard Rock gold processing plant

Browse:time  Update:2019-04-25

---We supply full line of mining equipments and technical support



Product Description


Hengcheng offers turnkey solutions for Rock/Alluvial Gold Processing Plant. We are one of the leading project suppliers for Rock/Alluvial Gold Processing Equipment and we work closely with our customers to fulfill their specific needs for customized package solution.


Specialized in the fabrication of these machines for 20 years and this enables us to be in a leading position in the field of Rock /AlluvialGold Processing/Mining.


For Alluvial gold mining plants please go and check by here: Alluvial gold process.



alt rock gold process

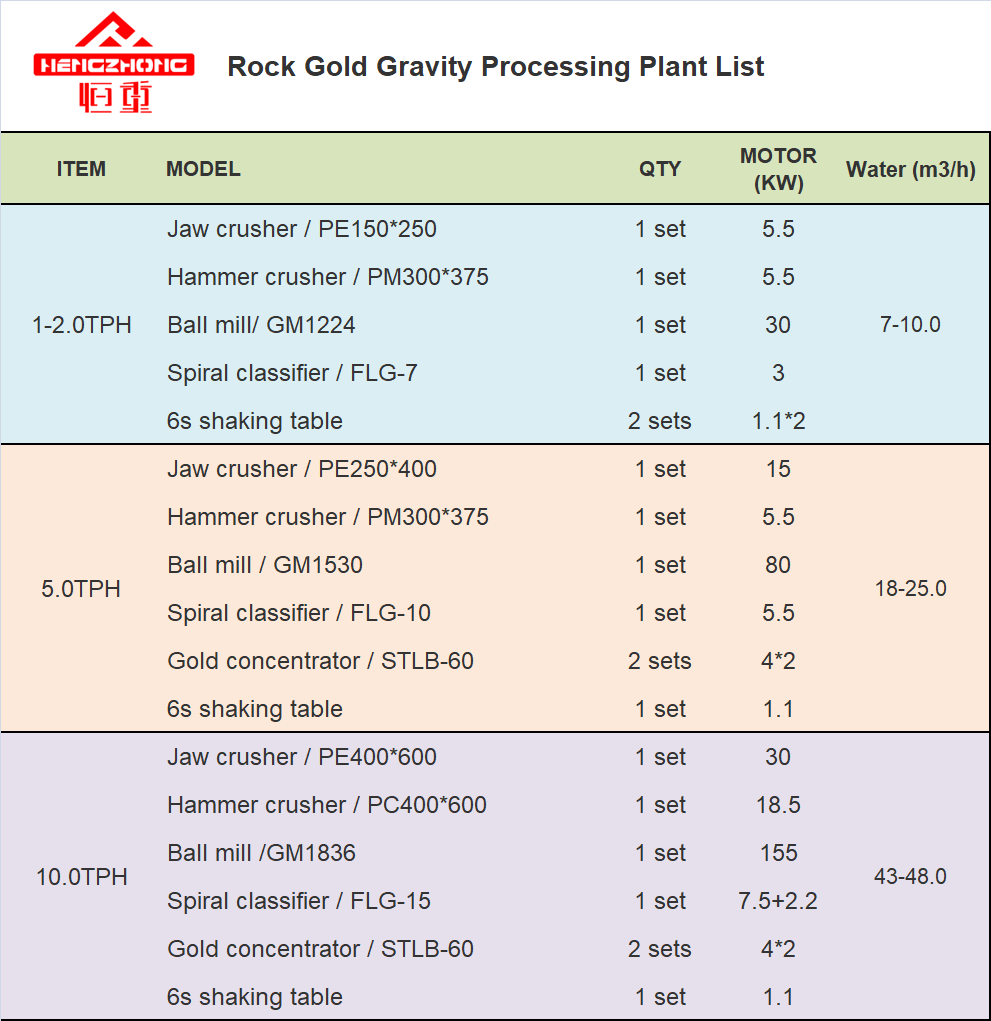

Main machines show:

1)Coarse crushing machine jaw crusher for gold

Jaw Crusher is preferable to be selected as primary machine for various materials with compressive strength up to 320MPa.A jaw or toggle crusher consists of a set of vertical jaws, one jaw being fixed and the other being moved back and forth relative to it by a cam or pitman mechanism.



Alt jaw crusher. jpg

2) Secondary crushing machine hammer crusher

Material from the upper mouth to feed into the machine, hit, impact, shear, abrasive and high-speed movement of the hammer and smash.


In the lower part of the rotor, with sieve, sieve size of the crushed material is less than the grain size is discharged through the sieve, sieve size larger than the coarse fraction retained on the sieve and grinding continued to hit the hammer, and finally discharged through the sieve outside the machine.


Alt hammer crusher.jpg



 3)rock gold mining equipment grinding machine ball mill

A ball mill is a type of grinder used to grind the crushed materials which including cement,silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics. etc  into extremely fine powder.

The ball mill is a horizontal rotating device transmitted by the outter gear. The materials are fed into the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different size of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board, then the grinding process is finished.


Alt ball mill.jpg

4)Rock gold mining equipment high weir spiral classifier

Spiral classifiers mainly include four types. They are high weir type single spiral classifier, high weir type double spiral classifier, immersed type single spiral classifier and immerse type double spiral classifier.
A spiral classifier is composed of a transmission device, spirals, tank, elevator mechanism, a bottom support (bearing bush) and a discharging valve.

 Alt spiral classifier for rock gold .jpg

 6) Gold centrifugal concentrator for rock gold processing

Centrifugal Concentrator is kind of centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.


Alt gold centrifugal concentrator.jpg



 7) 6s shaker table for gold processing

Shaking table (shake table) is one of the important dressing equipment depending on the gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.

 Alt gold shaker table.jpg



 8) small melting furnace for gold bar

Our company could supply different kinds of melting furnace for varied metals. Power use imported IGBT power devices which is more integrated and smaller size, efficient power output could reach above 90%. More energy saving, 40% lower than traditional model.

 Alt induction melting furnace

Alt gold gravity separation



Packaging & Shipping


Export standard container 20GP or 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.


Why choose us


1. We are Manufacturer  (Not Dealer):


All machineries from Jiangxi Hengcheng Mining Equipment Company are made by ourselves, with lower price, good quality and assured full after service. The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.


2. Training & Service:

We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.

Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.


3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.


What is the type and size of raw material?

What is required size of final product(mm)?

What is the capacity do you need per hour?


Company Information


Jiangxi Hengcheng Mining Equipment Company is specialized in manufacturing various kinds of mining equipment. We have served the mineral processing industry as an excellent mineral processing equipment manufacturer for over 20 years.


1

Hengcheng company is dedicated to provide a complete line of equipment including shaking table, spiral chute, jig machine,trommel,rotary scrubber, flotation machine, magnetic separator,grinding mill, and so on. We are involved in the range of mineral beneficiation services including mineral testing, process flowchart design, installation and commissioning, technical consulting, as well as staff training,etc. Our proven technologies and experience permit us to provide every customer with the most effiicent & commercial beneficiation plant equipment.



3
